Precision Static Sealing for Industrial Applications
At Modern’Gaskets, we are continuously expanding our sealing solutions to meet the growing demands of our clients. In addition to our expertise in plate heat exchangers, we now supply a comprehensive range of high-quality static flange gaskets (full face flat gaskets).
Designed to provide secure, leak-free connections between pipe flanges, our static gaskets ensure the safe and efficient transfer of fluids across various industrial networks.
The integrity of a flange connection relies heavily on the quality of the gasket material. Our flange gaskets are manufactured using KLINGERSIL C-4438, a premium compressed non-asbestos fiber (CNAF) material.
-
Chemical Resistance: Specifically engineered to withstand harsh environments, making it the ideal choice for the chemical industry and aggressive media.
-
Thermal & Mechanical Stability: Provides excellent resistance to high temperatures and pressures, preventing blow-outs and ensuring long-term durability.
-
Reliable Static Sealing: Guarantees a tight, uniform seal across the entire flange face (full face design), minimizing maintenance needs and costly downtime.

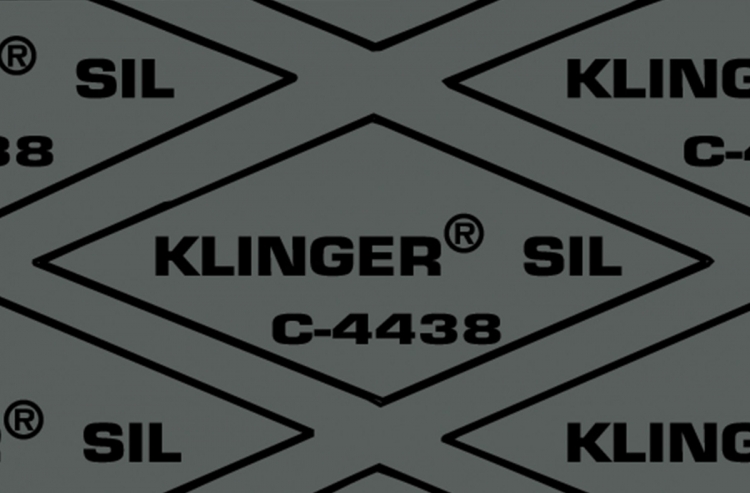

High-Performance Material: KLINGERSIL® C-4438

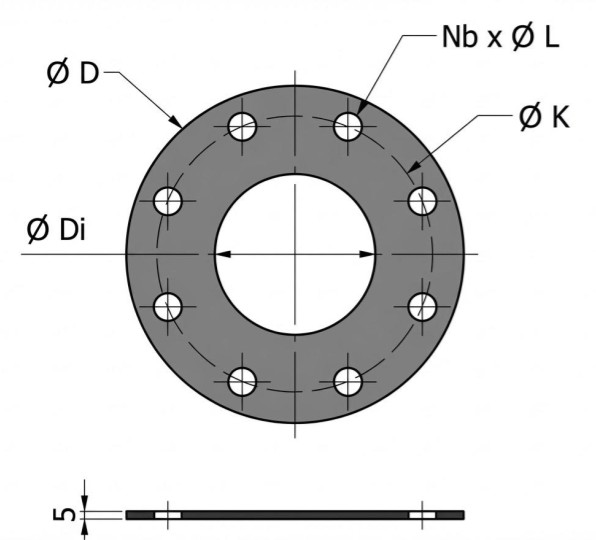

| Nominal Diameter | Pressure | Dimensions (Outer x Inner - mm) | Bolt Circle (K - mm) | Bolt Holes (n x ØL - mm) | Thickness | Reference Number |
|---|---|---|---|---|---|---|
| 40 | 10/16 | 150x45 | 110 | 4 x 18 | 5 | 9803278 |
| 50 | 10/16 | 165x55 | 125 | 4 x 18 | 5 | 9803279 |
| 60 | 10/16 | 175x65 | 135 | 4 x 18 | 5 | 9803280 |
| 65 | 10/16 | 185x70 | 145 | 4 x 18 | 5 | 9803281 |
| 80 | 10/16 | 200x90 | 160 | 8 x 18 | 5 | 9803282 |
| 100 | 10/16 | 220x105 | 180 | 8 x 18 | 5 | 9803283 |
| 125 | 10/16 | 250x130 | 210 | 8 x 18 | 5 | 9803284 |
| 150 | 10/16 | 285x155 | 240 | 8 x 22 | 5 | 9803285 |
| 200 | PN10 | 340x205 | 295 | 8 x 22 | 5 | 9803286 |
| 200 | PN16 | 340x205 | 295 | 12 x 22 | 5 | 9803287 |
| 250 | PN10 | 400x255 | 350 | 12 x 22 | 5 | 9803288 |
| 250 | PN16 | 405x255 | 355 | 12x26 | 5 | 9803289 |
| 300 | PN10 | 445x305 | 400 | 12x22 | 5 | 9803290 |
| 300 | PN16 | 460x305 | 410 | 12x26 | 5 | 9803291 |
| 400 | PN10 | 565x405 | 515 | 16x26 | 5 | 9803292 |
| 400 | PN16 | 580x410 | 525 | 16x30 | 5 | 9803293 |
Why Source Flange Gaskets from Modern’Gaskets?
Just like our plate heat exchanger components, our flange gaskets are backed by our dedicated sales and logistics teams. Based in Martigny, Switzerland, we leverage well-organized storage facilities to guarantee rapid fulfillment, precise order handling, and worldwide delivery. Whether you are conducting routine pipeline maintenance or building a new industrial network, Modern’Gaskets is your reliable partner for optimal operational efficiency.
